Manifold

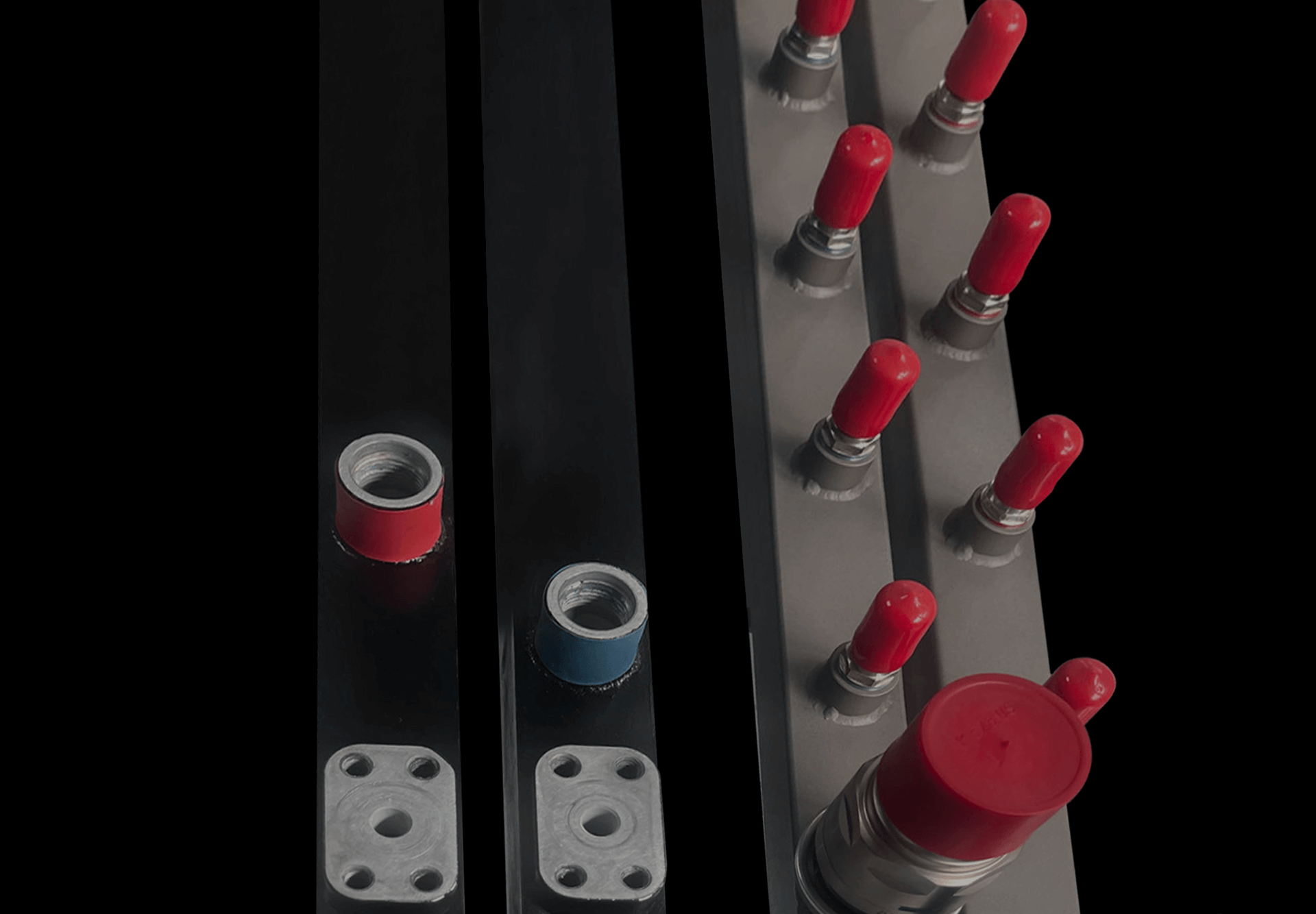

Inova’s Rack-Mounted Manifold provides an interface between Cold Plate Loops in the server and the CDUs.

Inova Manifold are constructed of reliable stainless steel and are combined with dry-disconnect, drip-free quick couplings.

Product Key Features

Automatic air vent

Hot-swappable bleed valve

Uniform flow distribution

Quick connection, easy operation

No leakage

High reliability, with process options

Nitrogen holding pressure shipping, clean and airtight

Support customization

Edit Content
SpecificationValue
Product Size
3025mmX80mmX83mm (Body)
Material
Body-Stainless Steel-40mm OD. 3mm Thickness. Hose-EPDM-Φ36.5mm.
Pressure Resistance
Working pressure: 0~10 Bar , Burst pressure: ≥16 Bar
Applicable Working Fluid
DI water, PG25, PG55
IN/OUT Interface
FD83
Quick Coupling Qty
28 pairs (Qty, OU, RU, Optional)
Flow Distribution Uniformity
≦10%
Edit Content
Datasheet
Liquid Cooling - ManifoldDS_Liquid_Cooling_Manifold.pdf
Technical Drawings
TD_INV22-28001_REVATD_INV22-28001_REVA.pdf
